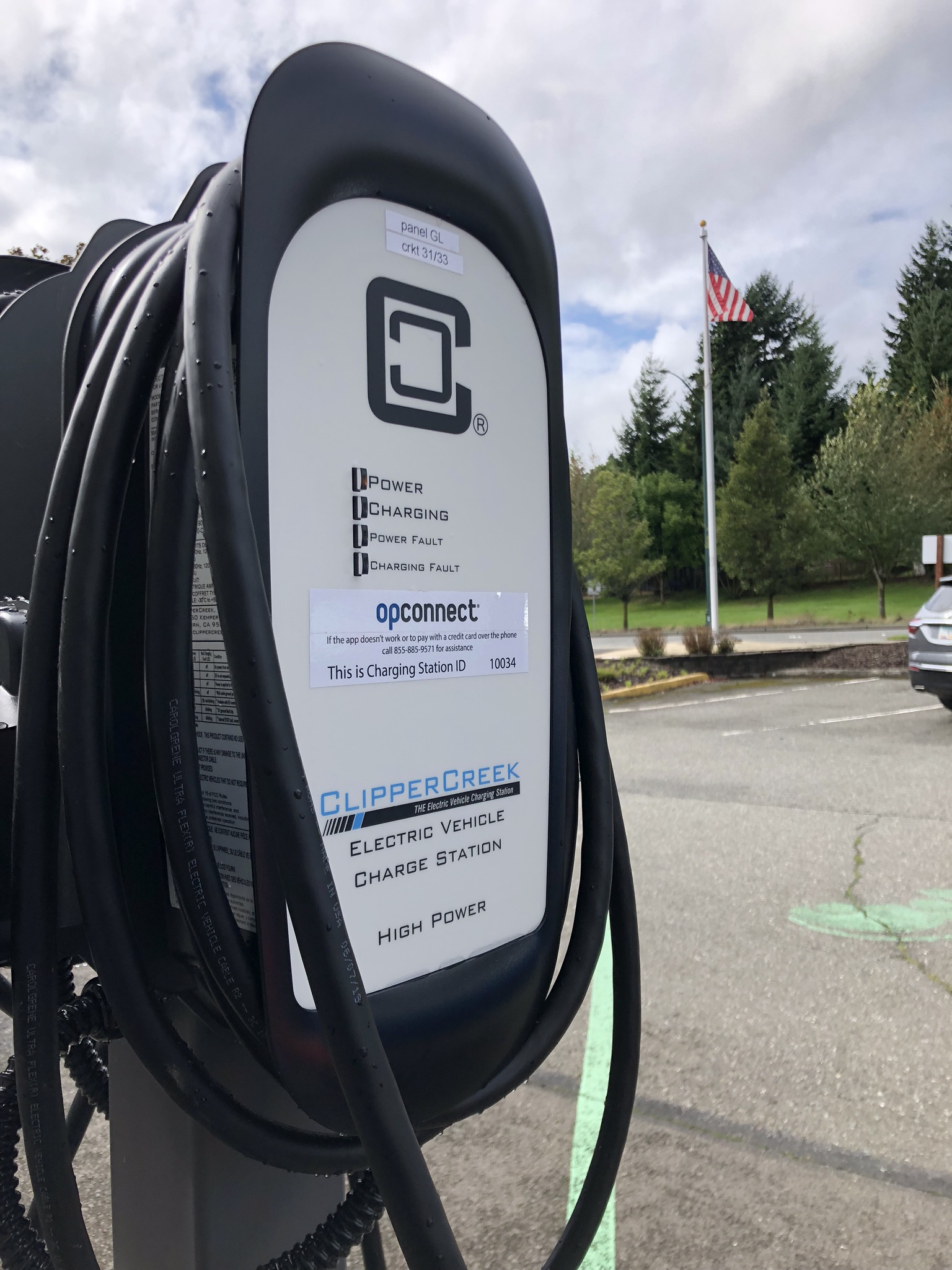

The Proven ClipperCreek HCS Series Chargers are now Available as

Plug-N-Play, OCPP Cloud Networked Smart Chargers

Developed by and Available Exclusively from

It’s the perfect charger for multi-unit dwellings, workplaces and light duty fleet charging

OpConnect sells and operates cloud networked versions of the ClipperCreek HCS series chargers with power ratings of 40, 50 or 60 amps. These chargers are available with either a hard-wired Ethernet, 4G LTE cellular or our Bluetooth interface to the cloud back office services. If you’re looking for a networked charger with access control, charge scheduling, revenue & data collection and plug-N-play installation that does not require provisioning once installed.

Technical Specifications
AC Power Input	208/240 VAC, Single Phase (3-phase possible)
Amperage	40A/50A/60A
Required Service Panel Breaker	40A/50A/60A, double pole, non-GFCI type on dedicated circuit
Output Charging Power	7.68kW/9.6kW/11.52kW
Charging Connector	SAE J1772, 25′ cable
Ground Fault Detection	Build-in, 5mA trip
Surge Protection	6kV @ 3000A – IEC 61000-4-4
Operating Temperature	-30°C to +50°C
Operating Humidity	90% RH, non-condensing
Enclosure	NEMA 4 – outdoor use; water tight
User Interface	Status Indicator LEDs, Smartphone App
Payment System	OpConnect App
Warranty	3 years parts only
Network	Bluetooth through driver mobile device
Cord Management System	Optional – reel-based system for ADA compliance

SCPPA Members Receive an Exclusive Discount

Lower Your Costs With our Bluetooth Network Connection

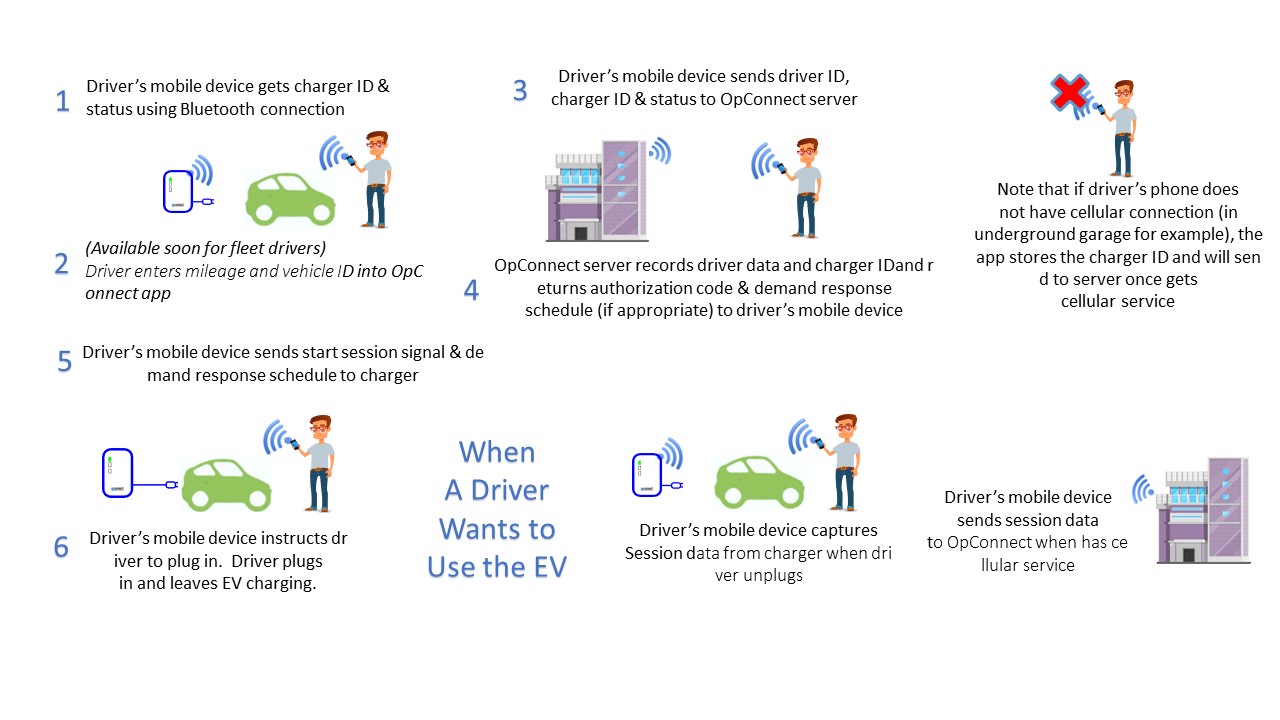

Here’s How it Works

Our Bluetooth network connection solution means that you can install in underground parking without the need to install cellular repeaters, run Cat 5 Ethernet cables to the chargers or spend other costs on the comms. And it enables OpConnect to offer you the lowest cost cloud networking fees around. Contact us at sales@opconnect.com to see if its the right solution for you.
